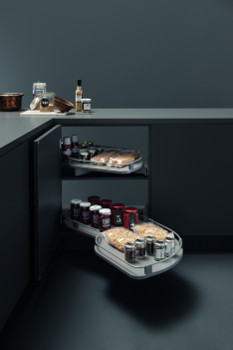

Pull out mechanism for blind corner storage, comprising of melamine shelf with single chromed wire rail surround

The mechanism is designed to be mounted on the existing middle shelf OR on the bottom of the cabinet for easy access to hidden corner

The unit is reversible

450 or 500mm Cabinet width door
Minimum door opening: 400mm
Minimum depth: 490mm
Minimum width: 840mm
Maximum load capacity: 25kg

600mm cabinet width door
Minimum door opening: 550mm
Minimum depth: 490mm
Minimum width: 1000mm
Maximum load capacity: 25kg

Order Code: EUK45F1DC - 450 or 500mm
Order Code: EUK60F1DC - 600mm
